iPhone 17 Pro Max 256GB

Network

Technology
2G Bands

3G Bands

GSM / CDMA / HSPA / EVDO / LTE / 5G
GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO

4G Bands

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66 – A3526
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71 – A3257
1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 48, 53, 66, 71 – A3525

5G Bands

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 48, 66 – A3527
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 53, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6 – A3526
1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79, 258, 260, 261

Speed

1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 75, 77, 78, 79 SA/NSA/Sub6 – A3525
1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 75, 77, 78, 79 SA/NSA/Sub6 – A3527
HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps

Launch

Announced Status

2025, September 09
Available. Released 2025, September 19

Body

Dimensions
Weight
Build
SIM

163.4 x 78 x 8.8 mm (6.43 x 3.07 x 0.35 in)
233 g (8.22 oz)
Glass front (Ceramic Shield 2), aluminum alloy frame, aluminum alloy back/ glass back (Ceramic Shield)
· Nano-SIM + eSIM + eSIM (max 2 at a time; International)
· eSIM + eSIM (8 or more, max 2 at a time; USA)
· Nano-SIM + Nano-SIM (China)
IP68 dust tight and water resistant (immersible up to 6m for 30 min)
Apple Pay (Visa, MasterCard, AMEX certified)

Display

Type

Size
Resolution
Protection

LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 1600 nits (HBM), 3000 nits (peak)
6.9 inches, 115.6 cm2 (~90.7% screen-to-body ratio)
1320 x 2868 pixels, 19.5:9 ratio (~460 ppi density)

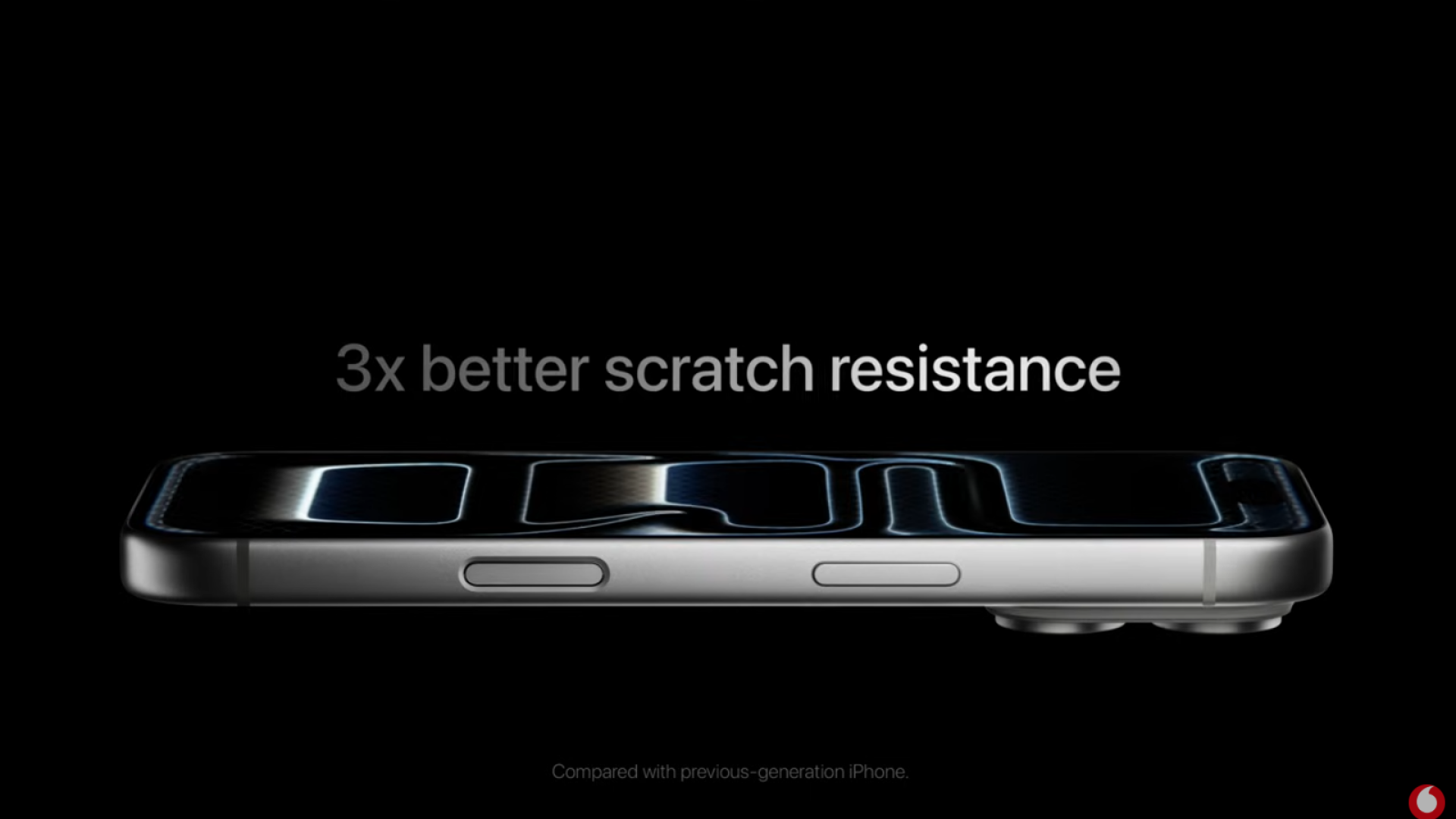

Ceramic Shield 2, Mohs level 5
Anti-reflective coating

Platform

OS
Chipset
CPU
GPU

iOS 26, upgradable to iOS 26.1
Apple A19 Pro (3 nm)
Hexa-core (2×4.26 GHz + 4xX.X GHz)
Apple GPU (6-core graphics)

Memory

Card SLot
Internal

No
256GB Built-in, 12GB RAM, NVMe

Main
Camera

Triple



Features
Video

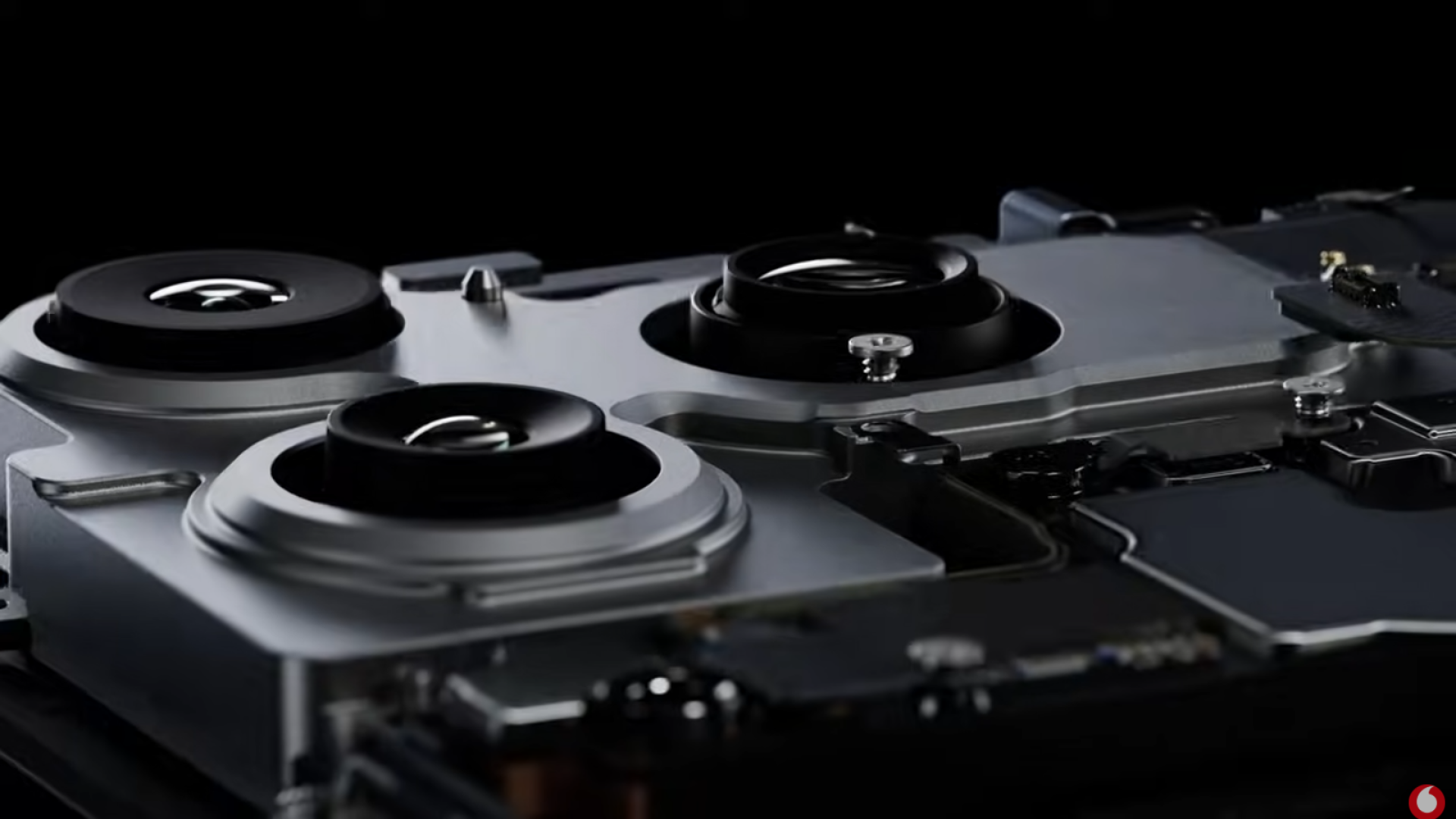

48 MP, f/1.8, 24mm (wide), 1/1.28″, 1.22µm, dual pixel PDAF, sensor-shift OIS
48 MP, f/2.8, 100mm (periscope telephoto), 1/2.55″, 0.7µm, PDAF, 3D sensor‑shift OIS, 4x optical zoom
48 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55″, 0.7µm, PDAF
TOF 3D LiDAR scanner (depth)
Dual-LED dual-tone flash, HDR (photo/panorama)
4K@24/25/30/60/100/120fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 120fps), ProRes, ProRes RAW (up to 120fps), Apple Log 2, 3D (spatial) video/audio, stereo sound rec.

Selfie
Camera

Single

Feature
Video

18 MP multi-aspect, f/1.9, 20mm (ultrawide), PDAF
SL 3D, (depth/biometrics sensor)
HDR, Dolby Vision HDR, 3D (spatial) audio, stereo sound rec., ProRes RAW, Apple Log 2
4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS

Sound

Loudspeaker
3.5mm Jack

Yes, with stereo speakers
No

Comms

WLAN
Bluetooth
Positioning
NFC
Radio
USB

Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, hotspot
6.0, A2DP, LE
GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC
Yes
No
USB Type-C 3.2 Gen 2, DisplayPort

Futures

Sensors

Face ID, accelerometer, gyro, proximity, compass, barometer
Ultra Wideband (UWB) support (gen2 chip)
Emergency SOS, Messages and Find My via satellite

Battery

Type


Charging

Market-dependent versions:
· Li-Ion 4823 mAh – Nano SIM model
· Li-Ion 5088 mAh – eSIM only model
Wired, PD3.2, AVS, 50% in 20 min
25W wireless MagSafe/Qi2, 50% in 30 min (15W – China)
4.5W reverse wired

Misc

Colors
Model
SAR
SAR EU

Silver, Cosmic Orange, Deep Blue
iPhone18,2, A3526, A3257, A3527, A3525
1.19 W/kg (head) 1.19 W/kg (body)
1.49 W/kg (head) 1.49 W/kg (body)

Ourtest

Performance


Display
Loudspeaker
battery

AnTuTu: 2600583 (v10)
GeekBench: 10118 (v6)
3DMark: 6010 (Wild Life Extreme)
1000 nits max brightness (measured)
-26.2 LUFS (Good)
Active use score 17:58h

Eu Label

Energy
Battery
Free Fall
Repairability

Class A
53:00h endurance, 1000 cycles
Class B (180 falls)
Class C
